Bitaxe 601 Gamma - Made in Germany

Bitaxe 601 Gamma – Now Made in Germany und CE-Certified

Note: The devices are currently in production. Final adjustments to the specifications may be made before delivery. Shipping is scheduled to begin in calendar week 17.

The new Bitaxe 601 Gamma sets new standards in single-ASIC-chip open-source Bitcoin mining and now boasts true German engineering quality: manufactured in Germany, CE-certified, and featuring numerous technical improvements unmatched in the international market.

What's new?

• Made in Germany & CE-Certified: Top manufacturing standards, verified quality, and reliability.
• Out-of-the-Box 1,3 TH/s: Right Out of the Box: While many competing products only reach 1.07 TH/s, the new Bitaxe 601 Gamma starts at 1.3 TH/s in standard operation.
• Significantly Improved Cooling Components: A better standard heat sink and an optimized fan provide better heat dissipation and higher efficiency.

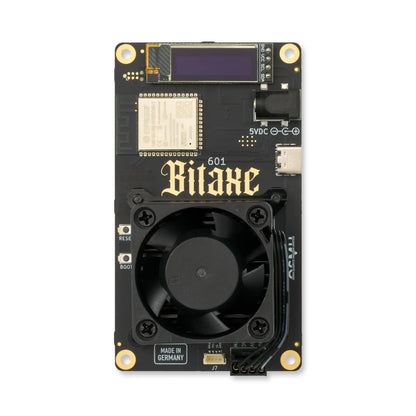

• All-Black-Design: From the circuit board to the heat sink and fan right down to the display, all components are black. This consistent color concept gives the Bitaxe 601 Gamma a sleek, high-quality look.
• New Mining Pool in Germany: With our own solo-mining pool, you benefit from Germany-based pool infrastructure with top performance and better latency times. Mining on your own Bitcoin node is still the best option.

Proven Bitaxe Quality and Improved Performance

The Bitaxe 601 Gamma represents the latest development in the Bitaxe series. It combines all the popular features of its predecessors with critical enhancements:

1. Powerful BM1370 ASIC Chip

   • Same chip as in the current Bitmain Antminer S21Pro.
   • Combined with German manufacturing quality for maximum reliability.
2. High Hash Rate of up to 1.3 TH/s (Out of the Box!)

   • Delivers more power by default than comparable competing products.
   • Even more performance possible with enhanced cooling (optionally available as an upgrade – e.g., ICE-Tower or Copperzilla).
3. Improved Efficiency
   • Equipped with high-quality components right from the factory.
   • Bitmain specifies an efficiency of 15 J/TH for this chip; our manufacturing quality fully exploits this potential.
4. Compact Design & Wi-Fi Integration

   • Space-saving and no tangled cables, thanks to built-in Wi-Fi.
   • Perfect for home or office use.
5. User-Friendly Interface & Detachable OLED Display

   • Straightforward step-by-step instructions, intuitive web interface in AxeOS.
   • Display is plugged in rather than soldered – for easy maintenance and optimal customization.
6. Open-Source Firmware
   • Community-driven development and endless customization options.
   • Become part of an active developer and mining community.
7. Upgraded Standard Heat Sink & High-Performance Fan
   • Specially developed heat sink (“The Bitchin’ Sink,” thanks to IamGPIO) for reliable cooling.
   • Powerful 5V Black-Magic fan from Gelid ensures optimal cooling.

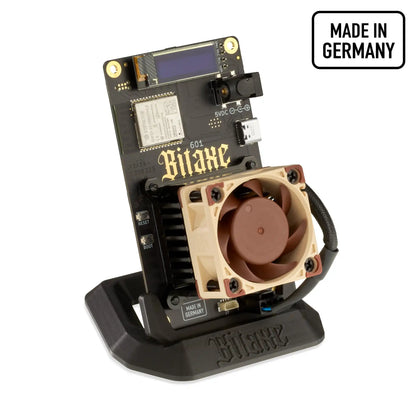

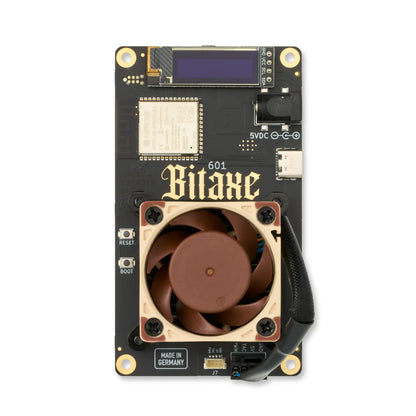

   • Optional quieter operation with an upgrade to a Noctua fan (not yet available – planned for May/June 2025 – can also be retrofitted).

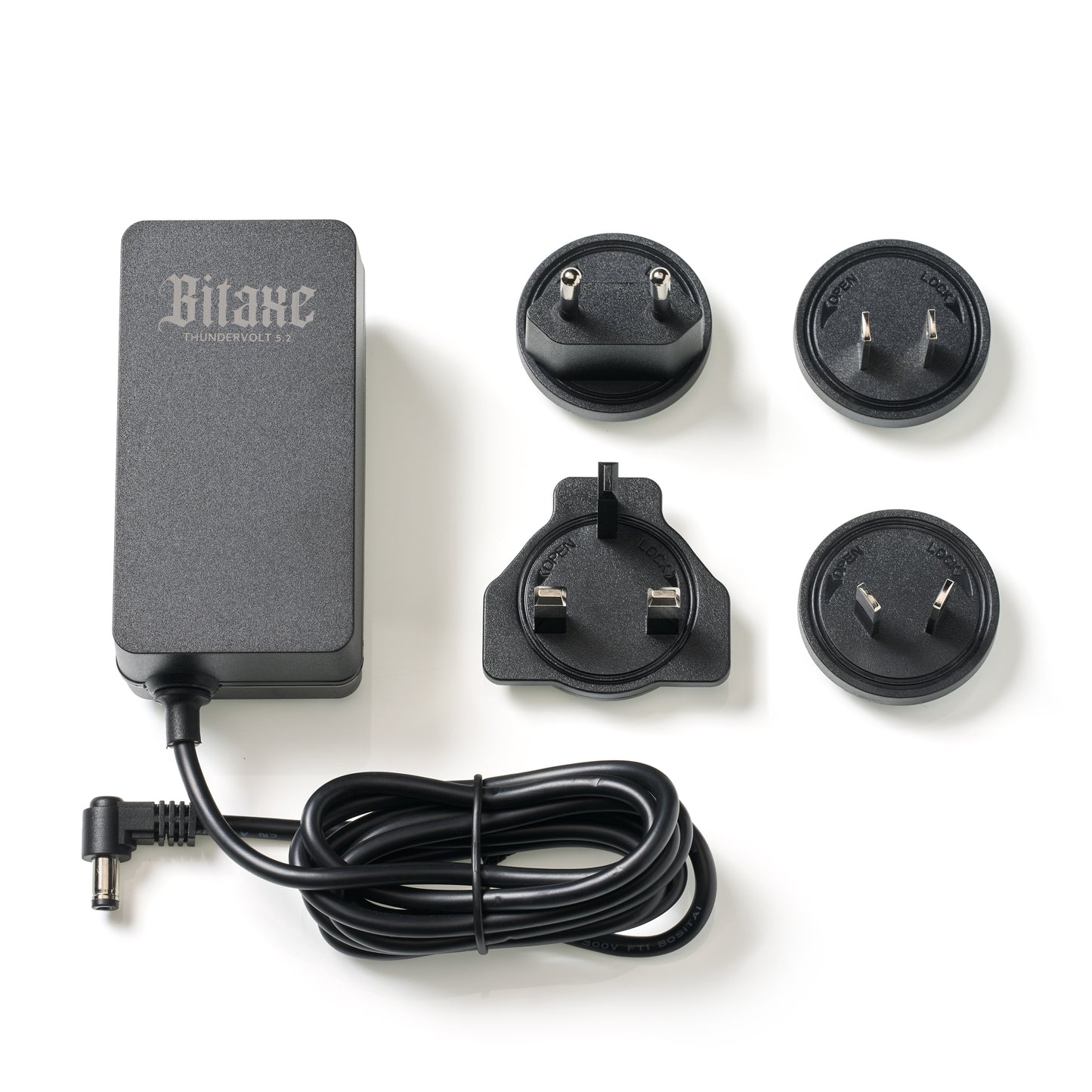

8. 30W (5V/6A) Bitaxe Power Supply Included
   • Perfectly matched power supply for stable operation.

   • Laser-engraved Bitaxe logo.
9. Made in Germany – Top Quality Standards
   • From component selection to final assembly.
   • Strict quality controls and CE certification ensure long-lasting performance.
10. New Germany-Based Mining Pool
    • Shorter latency times and optimized performance for European miners.
    • Only mining on your own Bitcoin node is better.

Solo Mining Made Easy

If you want to strengthen decentralized Bitcoin mining, the Bitaxe 601 Gamma is the perfect choice. Based on current statistics (as of April 2025), you could expect to find one block about every 100 days if there were around 50,000 Bitaxe Gammas worldwide each operating at 1.3 TH/s.

Easy Setup and Management

• ESP32-S3 microcontroller manages the miner and ensures fast Wi-Fi connectivity.
• User-friendly AxeOS web interface: setup completed in just a few minutes.
• Detachable OLED display: always keep an eye on mining status and key metrics – even without web browser access.

Open-Source Firmware: Maximum Freedom for Enthusiasts

Adjust your mining settings as you like or join the vibrant Bitaxe community. Take advantage of the potential offered by open-source development combined with German engineering to continuously improve Bitcoin mining. More info on the firmware can be found in the official GitHub repository.

Technical Specifications

• Hashrate: ≥ 1,3 TH/s factory default) – can be increased further with cooling upgrades.
• Power consumption: ~ 15 W/TH (according to chip specifications).
• Power supply: 30W (5V/6A) Bitaxe power supply (included).
• Heat sink: Massive standard heat sink (“The Bitchin’ Sink”).

• Fan: 5V Gelid Black-Magic fan with high static pressure for excellent cooling (Optional upgrade: quieter Noctua fan).
• Fan Connector: The Bitaxe 601 Gamma has two fan connectors. Both the conventional 4-pin connector and the small JST-mini connector are installed by default. This makes the Bitaxe compatible with all 5V fans.


Package Contents

1. Bitaxe 601 Gamma (Made in Germany, CE-certified)
2. The Bitchin’ Sink heat sink and 5V Gelid Black-Magic fan

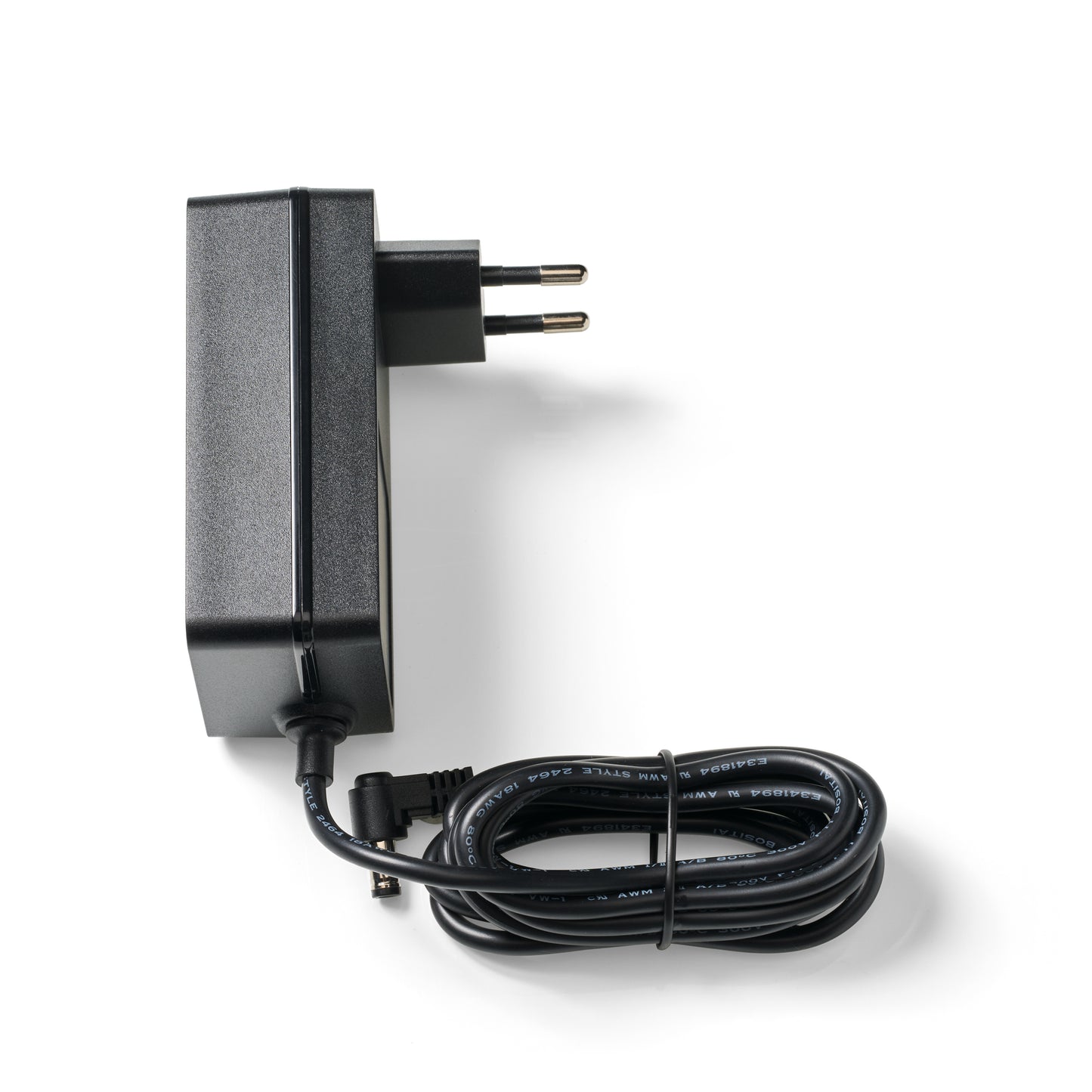

3. 30W (5V/6A) Bitaxe power supply with EU plug

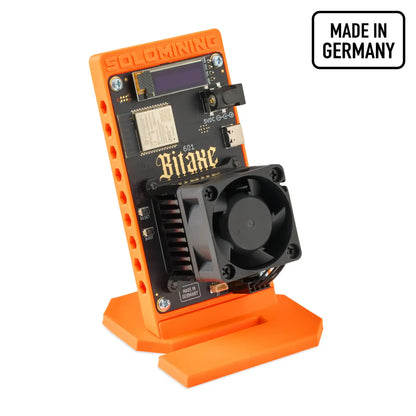

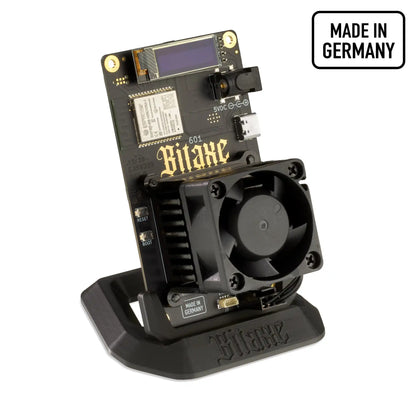

4. 3D-printed solo mining mount (optional at no extra charge)
5. Detachable OLED display

Note on Cooling and Warranty

• Standard Heat Sink (The Bitchin’ Sink): Usually sufficient for normal operation, but the device may run hot when overclocked or in very warm environments (e.g., peak summer). If overheating occurs, you can throttle the computing power via the AxeOS operating system. Please note that lowering the performance also reduces the hash rate. In throttled mode, the Bitaxe can’t deliver a full 1.3 TH/s.
• Overclocking: At your own risk! Any devices overclocked beyond the firmware’s intended frequency and voltage range are excluded from warranty and guarantee.

Conclusion

With the Bitaxe 601 Gamma, you’re getting a high-quality Bitcoin mining device made in Germany and CE-certified, combining performance, efficiency, and user-friendliness. Whether you’re a beginner, solo miner, or experienced enthusiast, the latest generation of the Bitaxe series offers everything you need for profitable and decentralized Bitcoin mining. And with our Germany-based mining pool, you benefit from even better performance.

For more information and community support, visit: Bitaxe.org
