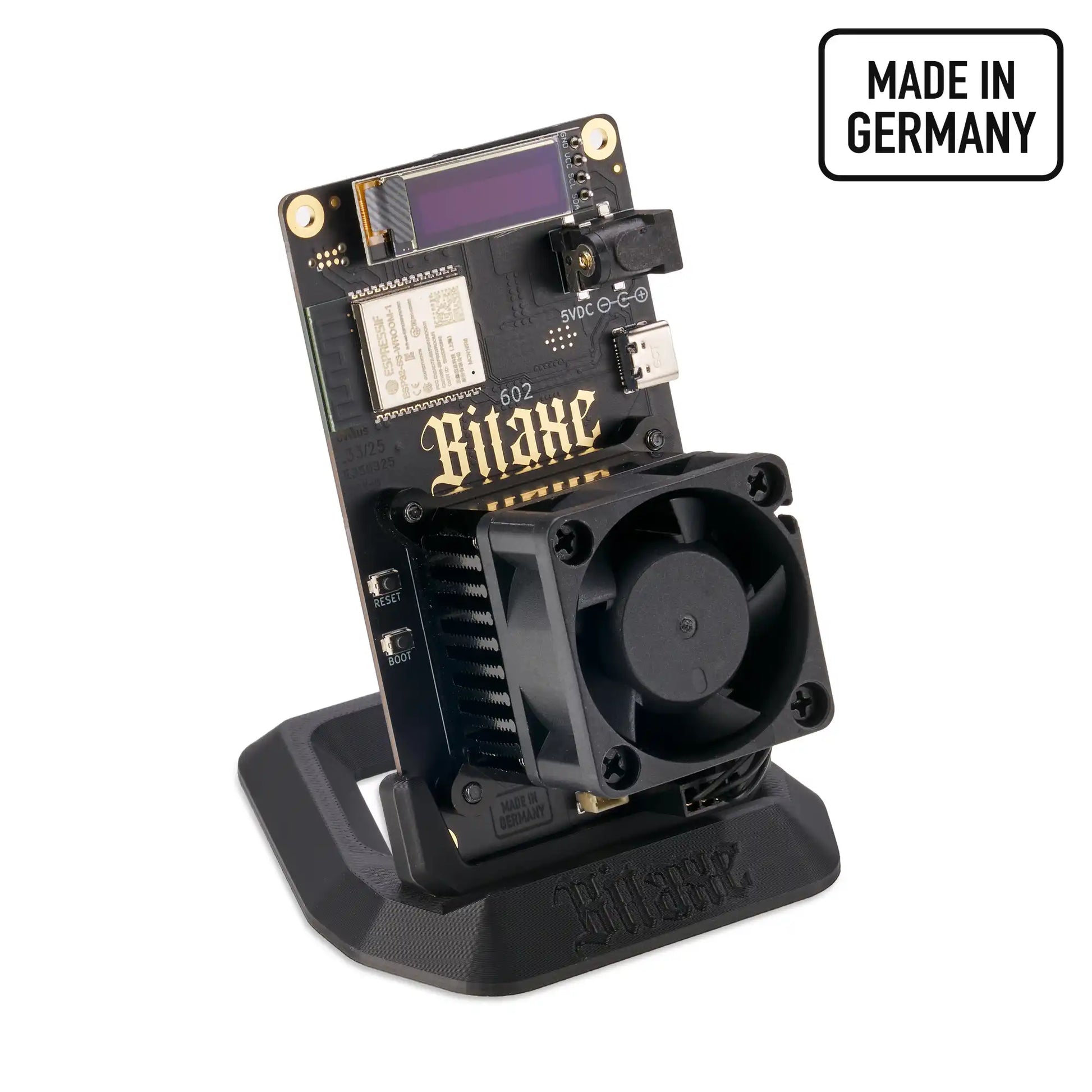

Bitaxe 602 Gamma - Made in Germany

• Made in Germany & CE-certified: Highest manufacturing standards, tested quality and reliability.
• Out-of-the-Box 1.3 TH/s: While many competitor products only achieve 1.07 TH/s, the new Bitaxe 602 Gamma starts directly with 1.3 TH/s in standard operation.
• Significantly improved cooling components: A better standard heatsink and an optimized fan ensure better heat dissipation and more efficiency.
• All-Black Design: From the circuit board to the heatsink, fan, and display, all components are in black. This consistent color concept gives the Bitaxe 602 Gamma an elegant, high-quality appearance. The Noctua Performance fan is now also available in black, so the performance variant is also entirely in black.
• New Mining Pool in Germany: With our own Solomining Pool, you benefit from a pool infrastructure hosted in Germany with highest performance and better latency times. Only mining to your own Bitcoin Node is even better.

The Bitaxe 602 Gamma represents the latest development in the Bitaxe series. It combines all the popular features of its predecessors with crucial improvements:

1. Powerful BM1370 ASIC Chip
   Identical chip as in the current Bitmain Antminer S21Pro.
   Combined with German manufacturing quality for maximum reliability. Additionally, only brand-new chips are used in the 602 Gamma, which further positively influences performance.

2. High Hashrate of up to 1.3 TH/s (Out-of-the-Box!)
   More power than comparable competitor products as standard.
   Even more is possible with adapted cooling (optionally available as an upgrade - e.g. ICE-Tower)!

3. Improved Efficiency
   Equipped with high-quality components ex works.
   Bitmain specifies an efficiency of 15 J/TH for this chip; our manufacturing quality fully utilizes this potential.

4. Compact Design & WLAN Integration
   Space-saving and without annoying cables thanks to integrated WLAN.
   Ideal for home or office.

5. User-Friendly Interface & Removable OLED Display
   Understandable step-by-step instructions, intuitive web interface in AxeOS.
   Display is simply plugged in, not soldered – for easy maintenance and optimal adjustment.

6. Open-Source Firmware
   Community-driven development and individual customization options.
   Become part of an active developer and mining community.

7. Improved Standard Heat Sink & Powerful Fan
   Heat sink specially developed for the Bitaxe (many thanks to IamGPIO for developing the Bitchin' Sink) for more reliable cooling.
   Powerful 5V Black-Magic fan from Gelid for optimal cooling performance.
   Optionally even quieter by upgrading to the Performance Noctua fan. By the way, the Noctua fan is exclusively available from us completely in black.

8. 41.6W (5.2V/8A) Bitaxe Power Supply Included
   Perfectly designed power supply for stable operation.
   With laser-engraved Bitaxe logo.

9. Made in Germany – Highest Quality Standards
   From component selection to final assembly.
   Strict quality controls and CE certification guarantee long-lasting performance.


New, Germany-based Mining Pool
Shorter latency times and optimized performance for European miners.
Only mining to your own Bitcoin Node is even better.

For those looking to strengthen decentralized Bitcoin mining, the Bitaxe 602 Gamma is an excellent choice. Based on current statistics (as of February 2026), a block could be found approximately every 100 days, provided that around 50,000 Bitaxe Gammas are in operation worldwide, each at 1.3 TH/s.

• Thanks to the integrated Wi-Fi module, the ESP32-S3 microcontroller not only controls the miner, but also ensures a fast Wi-Fi connection. Completely without extra cables.
• User-friendly AxeOS web interface: Setup completed in just a few minutes.


• Hashrate: ≥ 1.3 TH/s (factory standard) – can be increased with cooling upgrade.
• Power consumption: ~ 15 W/TH (according to chip specification).
• Power supply: 41.6W (5.2V/8A) Bitaxe power supply (included).
• Heatsink: Solid standard heatsink (The Bitchin' Sink).
• Fan: 5V Gelid Black-Magic fan with high static pressure for excellent cooling (Optional: Upgrade to quiet performance Noctua fan. Exclusively available from us in black).

1. Bitaxe 602 Gamma (Made in Germany, CE certified)
2. 41.6W (5.2V/8A) Bitaxe power supply with EU plug (optional with international plug adapters)
3. 3D-printed Bitaxe mount

• Standard Heatsink: Usually sufficient for normal operation; however, given the extremely high hashrate ex works, the device already runs at its limit even in standard operation. If there are temperature issues (overheating) or if the fan is too loud, throttling the computing power via the AxeOS operating system can help. Our recommendation in this case is a frequency of 525 MHz and a core voltage of 1150 mV. Note: This comes with a reduced hashrate. When throttled, the Bitaxe will not deliver 1.3 TH/s.
• Overclocking: At your own risk! Devices overclocked beyond the frequency and voltage range provided in the firmware are excluded from warranty and guarantee.
• Regular Care and Maintenance: The Bitaxe is a high-performance miner that requires regular dusting and maintenance. Please also note that the thermal paste should be replaced at regular intervals (we recommend every 6 months at the latest).

With the Bitaxe 602 Gamma, you're bringing a high-quality, Made in Germany and CE-certified Bitcoin miner into your home that combines performance, efficiency, and user-friendliness. Whether you're a beginner, a solo miner, or an experienced enthusiast – the latest generation of the Bitaxe series offers everything you need for profitable and decentralized Bitcoin mining. And thanks to our mining pool based in Germany, you'll benefit from even better performance.

More information and community support at: Bitaxe.org

EU_Declaration_of_Conformity.pdf
