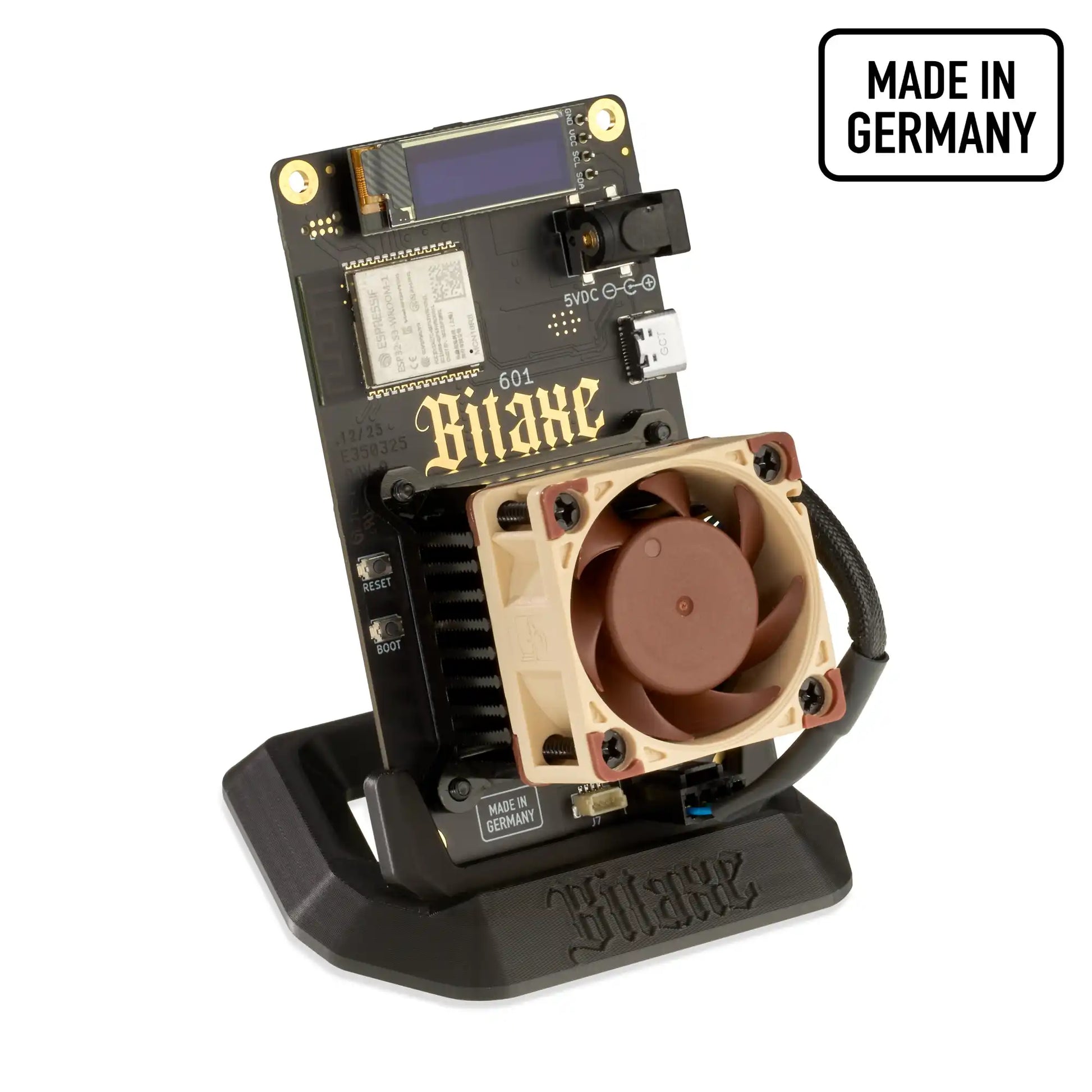

Bitaxe 601 Gamma - Made in Germany

• Made in Germany & CE certified: Highest manufacturing standards, tested quality and reliability.
• Out-of-the-Box 1.3 TH/s: While many competitor products only achieve 1.07 TH/s, the new Bitaxe 601 Gamma starts directly with 1.3 TH/s in standard operation.
• Significantly improved cooling components: A better standard heatsink and an optimized fan ensure better heat dissipation and more efficiency.
• All-Black Design: From the PCB to the heatsink and fan to the display, all components are black. This consistent color concept gives the Bitaxe 601 Gamma an elegant, high-quality appearance. (Note: Since the Noctua Performance fan itself is not black, the Noctua variant is no longer an all-black design)
• New Mining Pool in Germany: With our own Solomining Pool, you benefit from a pool infrastructure hosted in Germany with highest performance and better latency times. Only mining to your own Bitcoin Node is even better.

The Bitaxe 601 Gamma represents the latest evolution of the Bitaxe series. It combines all the popular features of its predecessors with crucial improvements:

1. Powerful BM1370 ASIC Chip
   Identical chip as in the current Bitmain Antminer S21Pro.
   Combined with German manufacturing quality for maximum reliability.

2. High Hashrate of up to 1.3 TH/s (Out-of-the-Box!)
   More power standard than comparable competitor products.
   Even more is possible with customized cooling (optionally available as an upgrade - e.g., ICE-Tower or Copperzilla)!

3. Improved Efficiency
   Equipped with high-quality components from the factory.
   Bitmain specifies an efficiency of 15 J/TH for this chip; our manufacturing quality fully exploits this potential.

4. Compact Design & WLAN Integration
   Space-saving and no annoying cables thanks to integrated WLAN.
   Ideal for home or office.

5. User-Friendly Interface & Removable OLED Display
   Understandable step-by-step instructions, intuitive web interface in AxeOS.
   Display is plugged in, not soldered – for easy maintenance and optimal adaptation.

6. Open-Source Firmware
   Community-driven development and individual customization options.
   Become part of an active developer and mining community.

7. Improved Standard Heatsink & Powerful Fan
   Heatsink specially developed for the Bitaxe (many thanks to IamGPIO for developing the Bitchin' Sink) for more reliable cooling.
   Powerful 5V Black-Magic fan from Gelid for optimal cooling performance.
   Optionally even quieter with an upgrade to the Performance Noctua fan.

8. 31.2W (5.2V/6A) Bitaxe Power Supply Included
   Perfectly designed power supply for stable operation.
   With laser-engraved Bitaxe logo.

9. Made in Germany – Highest Quality Standards
   From component selection to final assembly.
   Strict quality controls and CE certification guarantee long-lasting performance.


New, Germany-based Mining Pool
Shorter latencies and optimized performance for European miners.
Only mining on your own Bitcoin Node is even better.

Anyone looking to strengthen decentralized Bitcoin mining is well-advised to consider the Bitaxe 601 Gamma. Based on current statistics (as of April 2025), a block could be found, on average, every 100 days, provided that approximately 50,000 Bitaxe Gammas with 1.3 TH/s per device are in use worldwide.

• ESP32-S3 microcontroller controls the miner and ensures a fast Wi-Fi connection.
• User-friendly AxeOS web interface: Setup in just a few minutes.
• Detachable OLED display: Monitor mining status and key metrics at any time - even without web browser access.


Maximum Freedom for Enthusiasts
Customize your mining settings to your own preferences or join the vibrant Bitaxe community. Harness the potential offered by open-source development paired with German engineering to continuously improve Bitcoin mining. More information about the firmware can be found in the official GitHub repository.

• Hashrate: ≥ 1.3 TH/s (factory standard) – can be further increased with cooling upgrade.
• Power Consumption: ~ 15 W/TH (according to chip specification).
• Power Supply: 31.2W (5.2V/6A) Bitaxe Power Supply (included).
• Heatsink: Solid standard heatsink (The Bitchin' Sink).
• Fan: 5V Gelid Black-Magic fan with high static pressure for excellent cooling (Optional: Upgrade to quiet performance Noctua fan).
• Fan Connector: The Bitaxe 601 Gamma has two fan connectors. Both the conventional 4-pin connector and the small JST mini connector are installed as standard. This makes the Bitaxe compatible with all 5V fans.

1. Bitaxe 601 Gamma (Made in Germany, CE certified)
2. The Bitchin' Sink heatsink and 5V Gelid Black-Magic fan (optional Performance Noctua fan)
3. 31.2W (5.2V/6A) Bitaxe power supply with EU plug (optional with international plug adapters)
4. 3D-printed Solomining holder (optional at no extra charge)
5. Removable OLED display

• Standard Heatsink (The Bitchin' Sink): Usually sufficient for normal operation, but the device – given its enormously high hash rate ex works – already operates at its limit even in standard mode. In case of temperature problems (overheating), or if the fan is too loud, throttling the computing power via the AxeOS operating system helps. Our recommendation in this case is a frequency of 636 MHz and a core voltage of 1125 mV. Note: This goes hand in hand with a reduced hash rate. In throttled state, the Bitaxe will then not deliver 1.3 TH/s.
• Overclocking: At your own risk! Devices overclocked beyond the frequency and voltage range provided in the firmware are excluded from warranty and guarantee.
• Regular Care and Maintenance: The Bitaxe is a high-performance miner that needs to be regularly dusted and maintained. Please also note that the thermal paste should be replaced at regular intervals (we recommend at least every 6 months).

With the Bitaxe 601 Gamma, you get a high-quality, Made in Germany and CE-certified Bitcoin mining device that combines performance, efficiency, and user-friendliness. Whether you're a beginner, solo miner, or experienced enthusiast – the latest generation of the Bitaxe series offers everything you need for profitable and decentralized Bitcoin mining. And thanks to our mining pool based in Germany, you benefit from even better performance.

More information and community support at: Bitaxe.org
