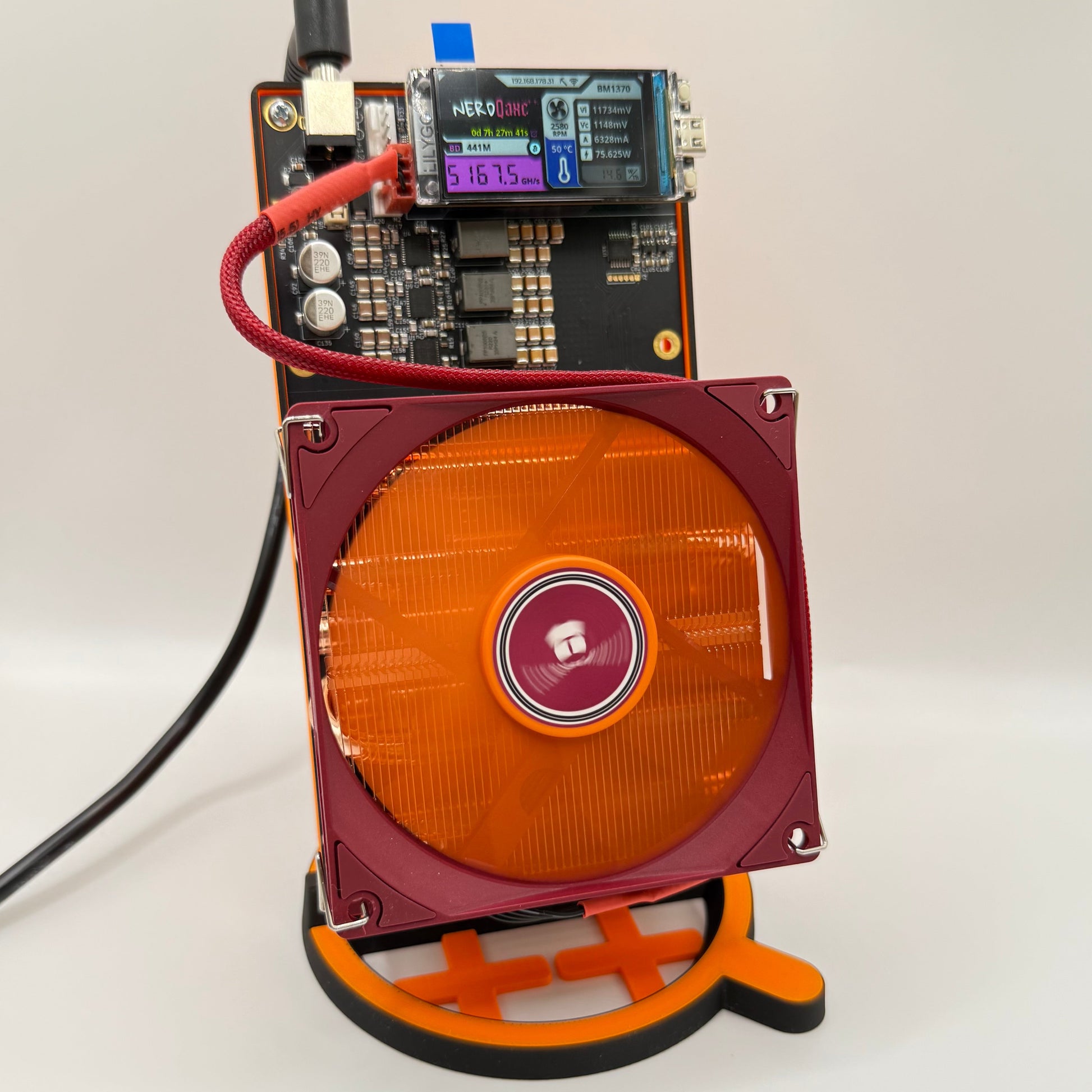

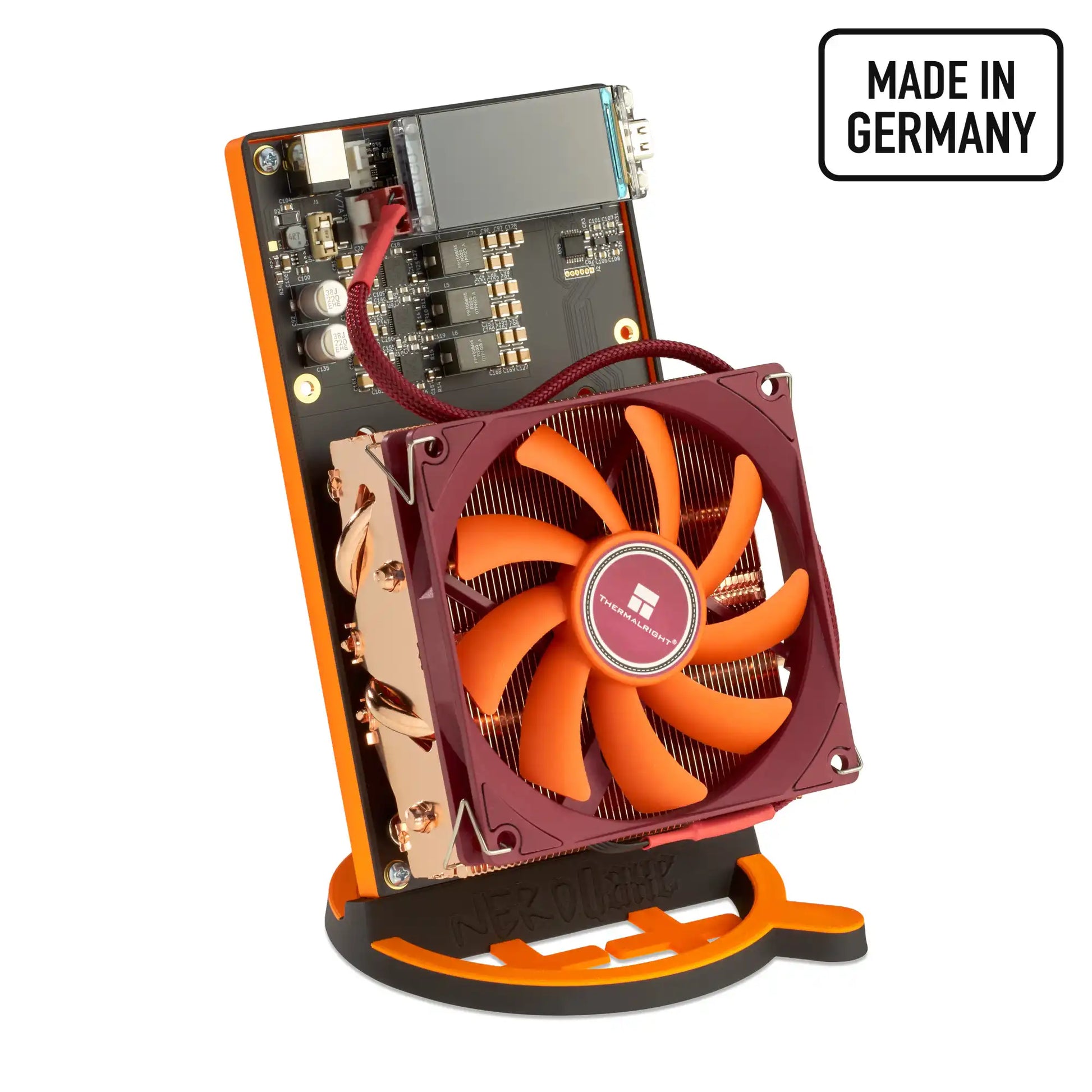

NerdQaxe++ - Made in Germany

• Made in Germany and CE compliant, with final inspection in Germany.
• Four BM1370 ASICs deliver approx. 4.9 TH/s out of the box. It is the same chip generation as in the Antminer S21 Pro, here in a home-sized device.

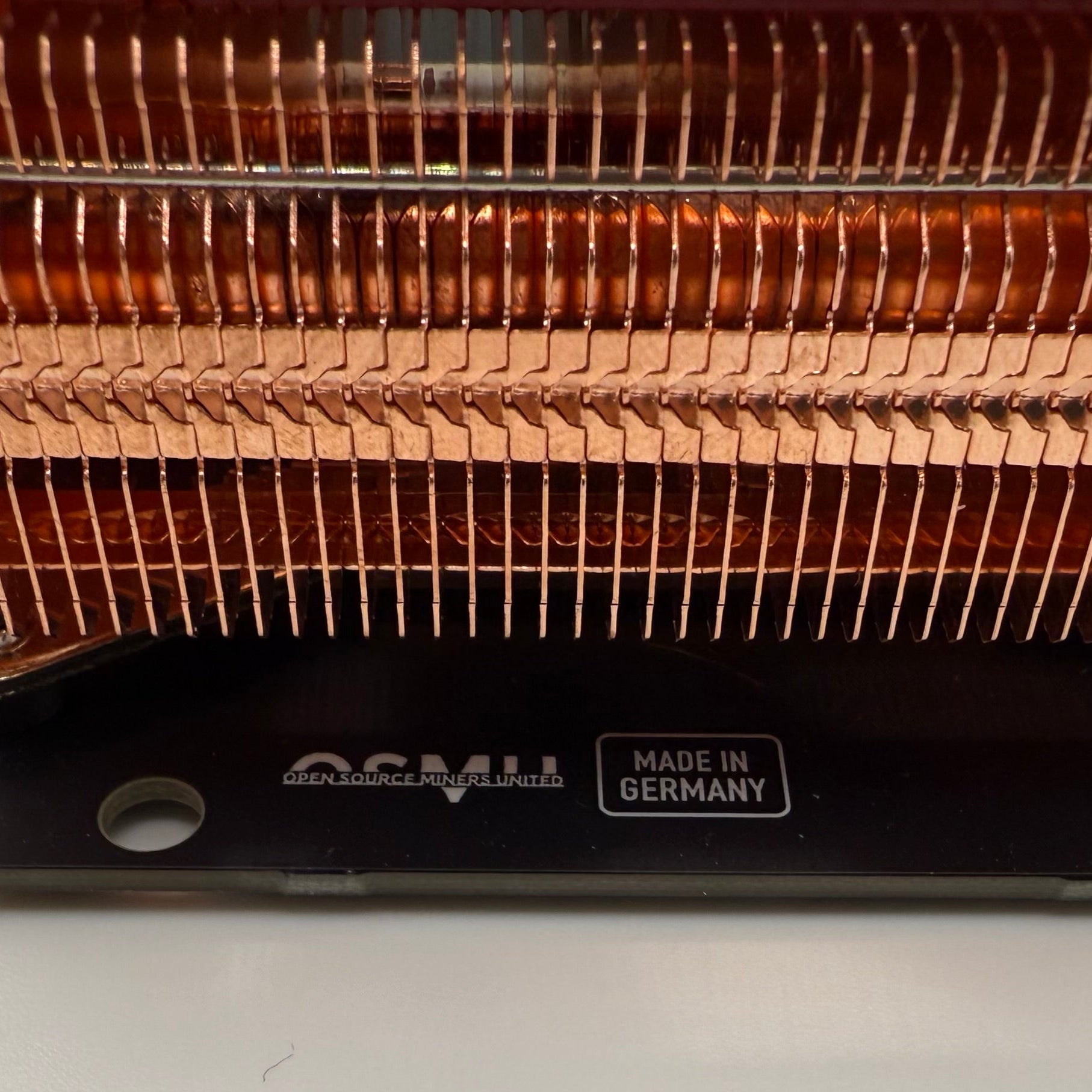

• 540 g solid-copper heatsink with performance fan: cooler, quieter and with more headroom for overclocking than standard aluminium heatsinks.
• Approx. 75 W power consumption, which is 15 to 16 J/TH.

1. 4× BM1370 ASIC: chips with a high hashrate per watt.
2. Plug-and-Mine: AxeOS comes pre-installed, setup takes less than 5 minutes.
3. Open and expandable: hardware and firmware sources are fully public.
4. Solid copper heatsink: 540 g of copper and a PWM fan keep temperatures stable over the long term.
5. 24/7 operation: selected components and durable solder joints for continuous use.

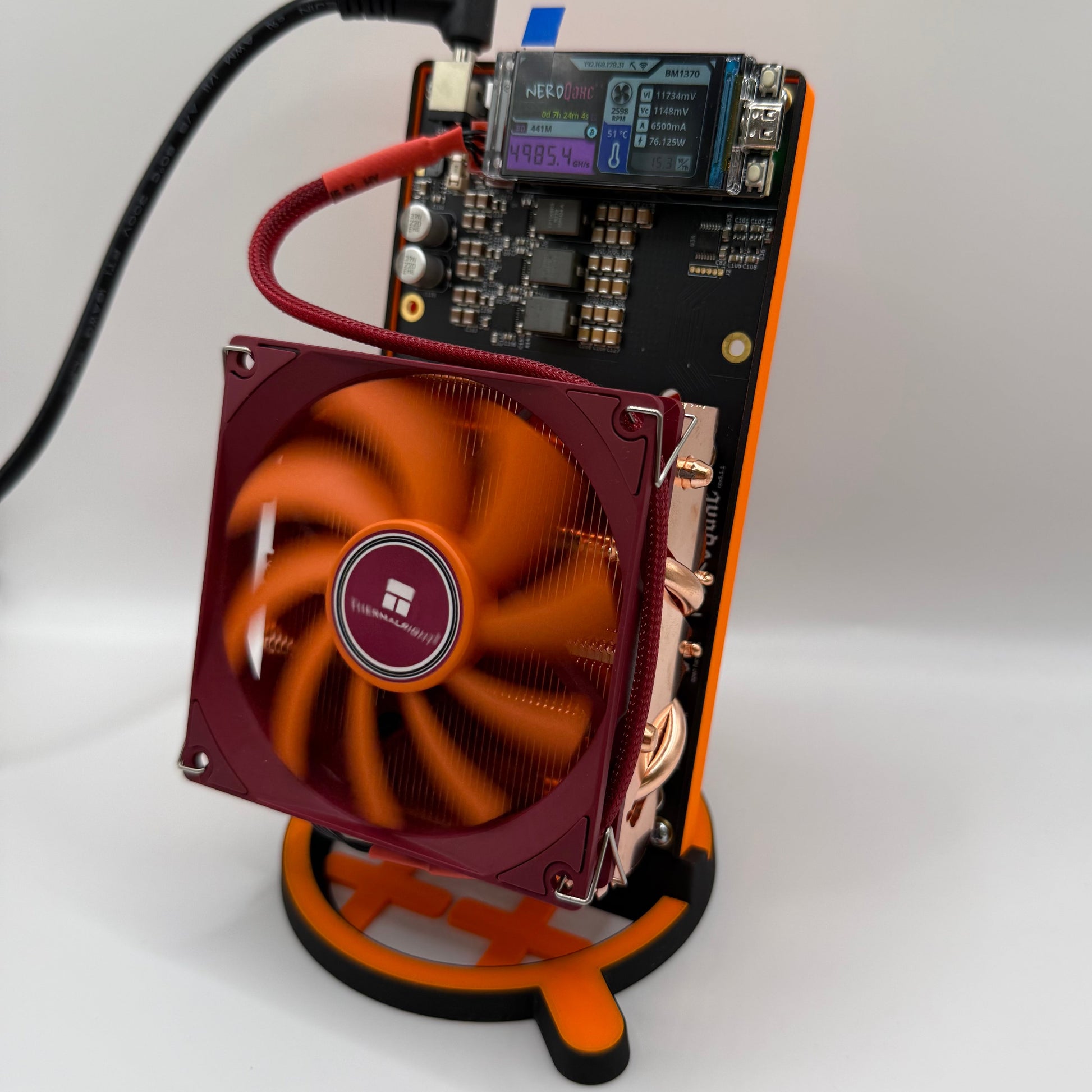

6. Color display (LILYGO T-Display-S3): live hashrate, temperature and voltage on the device.

Hashrate

approx. 4.9 TH/s (±15 %)

ASICs

4× BM1370PA

Power Consumption

approx. 75 W at 12 V

Efficiency

approx. 15 to 16 J/TH

Cooling

540 g solid copper + performance PWM fan (pre-installed)

Firmware

AxeOS (open source)

Power Supply

124 W (12.4 V / 10 A) power adapter included

Connectivity

Wi-Fi

• LILYGO T-Display-S3: mining status and key figures on a large color display, even without a browser.
• Web interface: setup is done in a few minutes.

Hardware and firmware files are fully open source. To get started, unpack, connect power and network, enter your Bitcoin address, done.

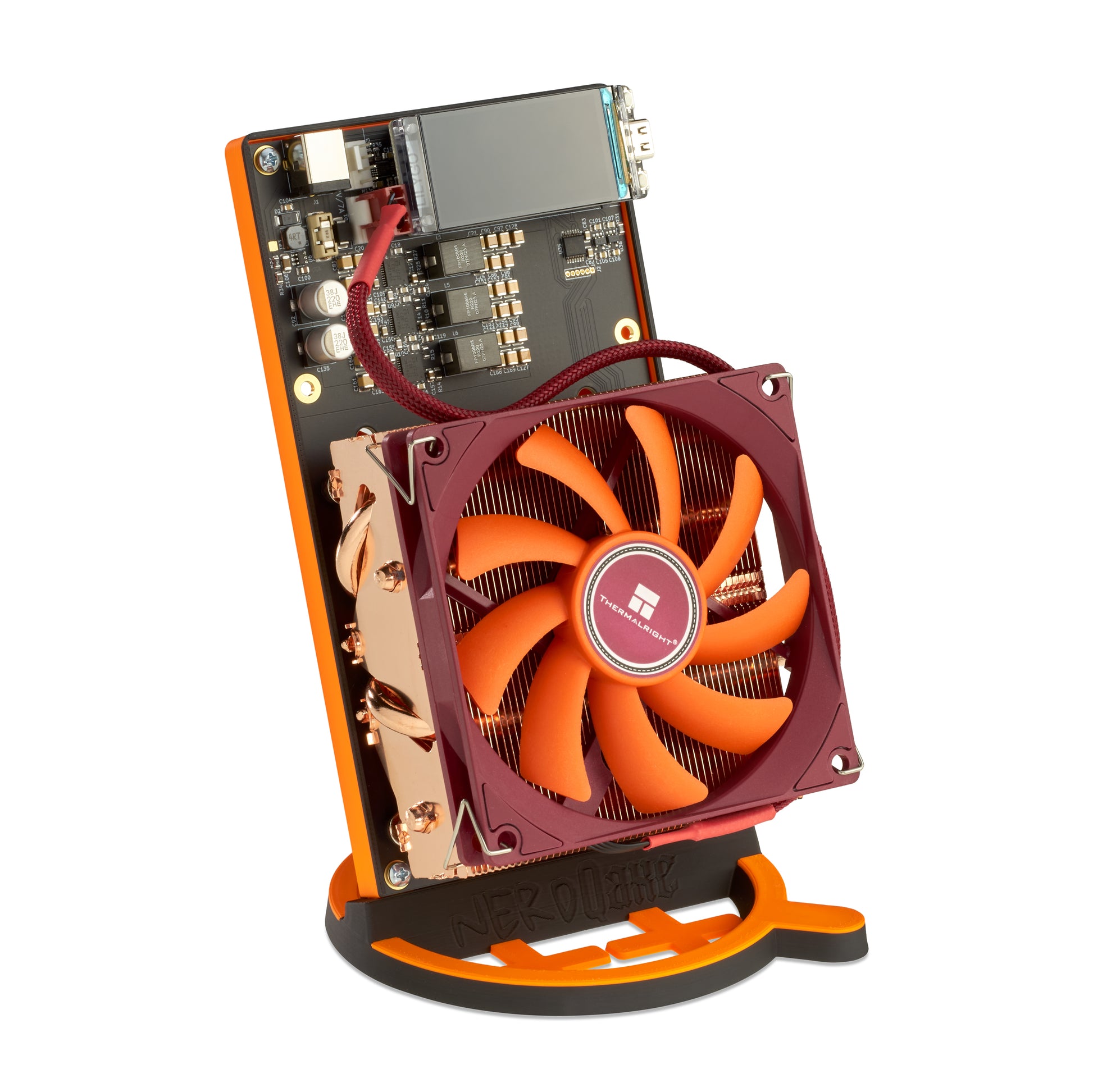

1. NerdQaxe++ (Made in Germany) incl. 540 g copper heatsink and performance fan (pre-installed)

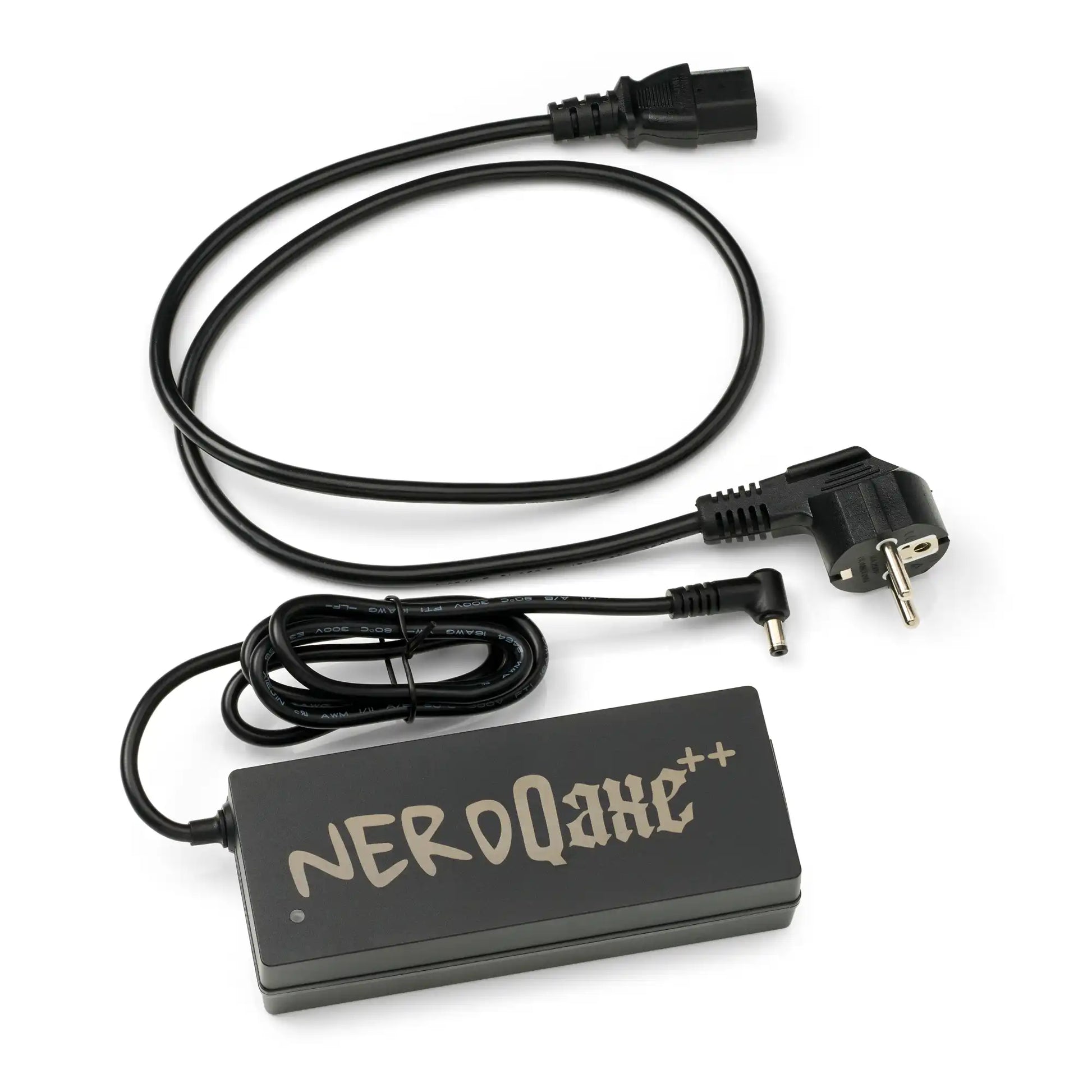

2. 124 W (12.4 V / 10 A) power supply with EU plug

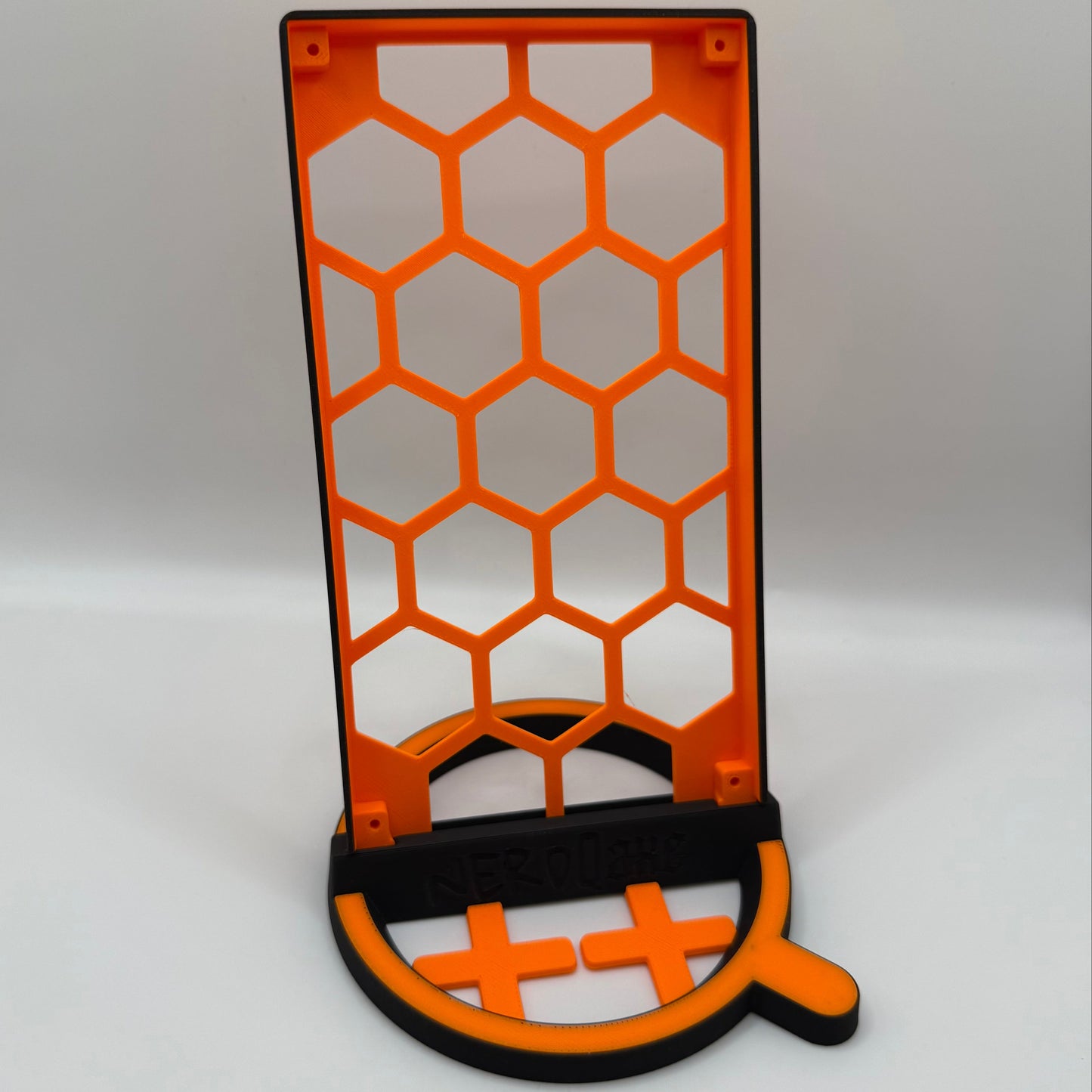

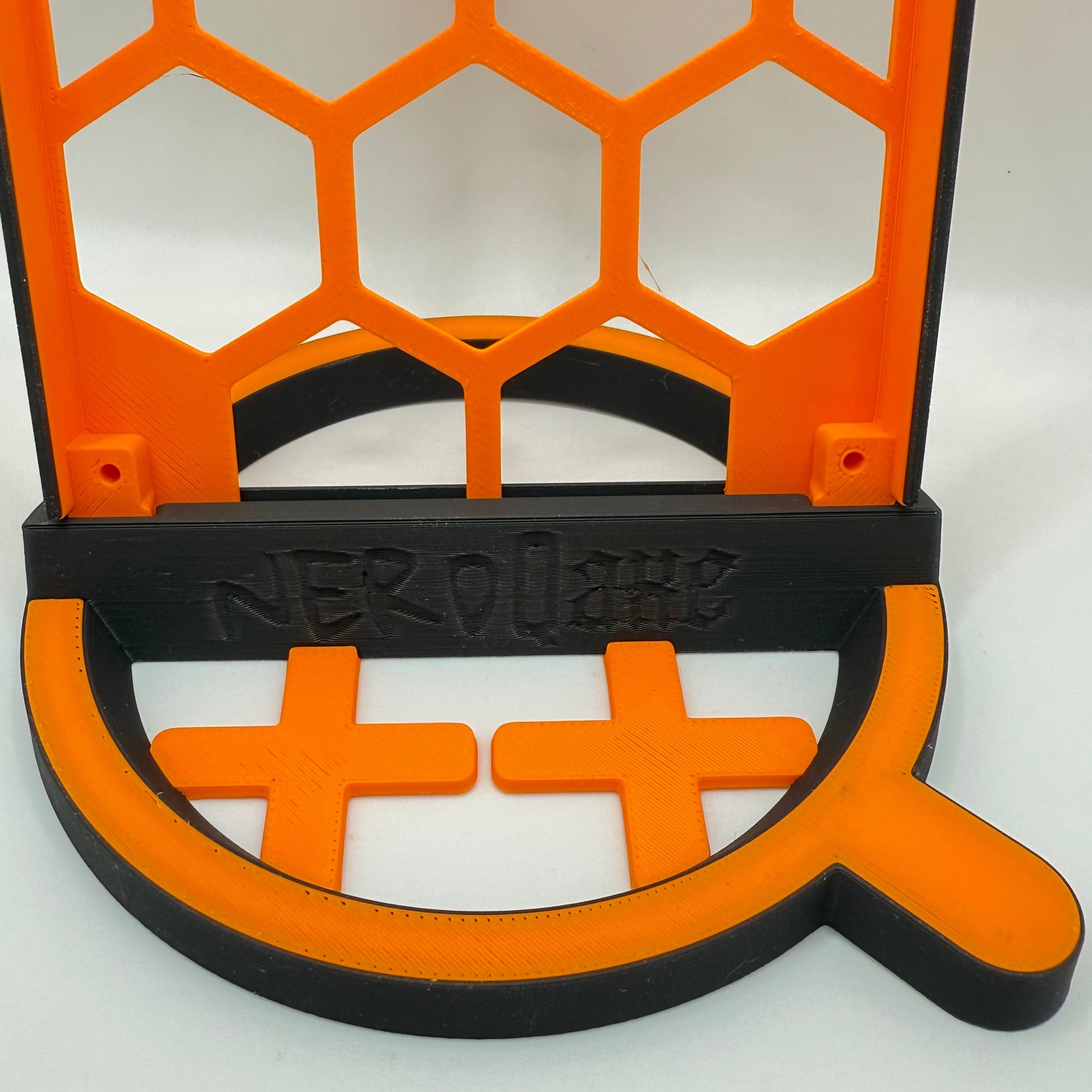

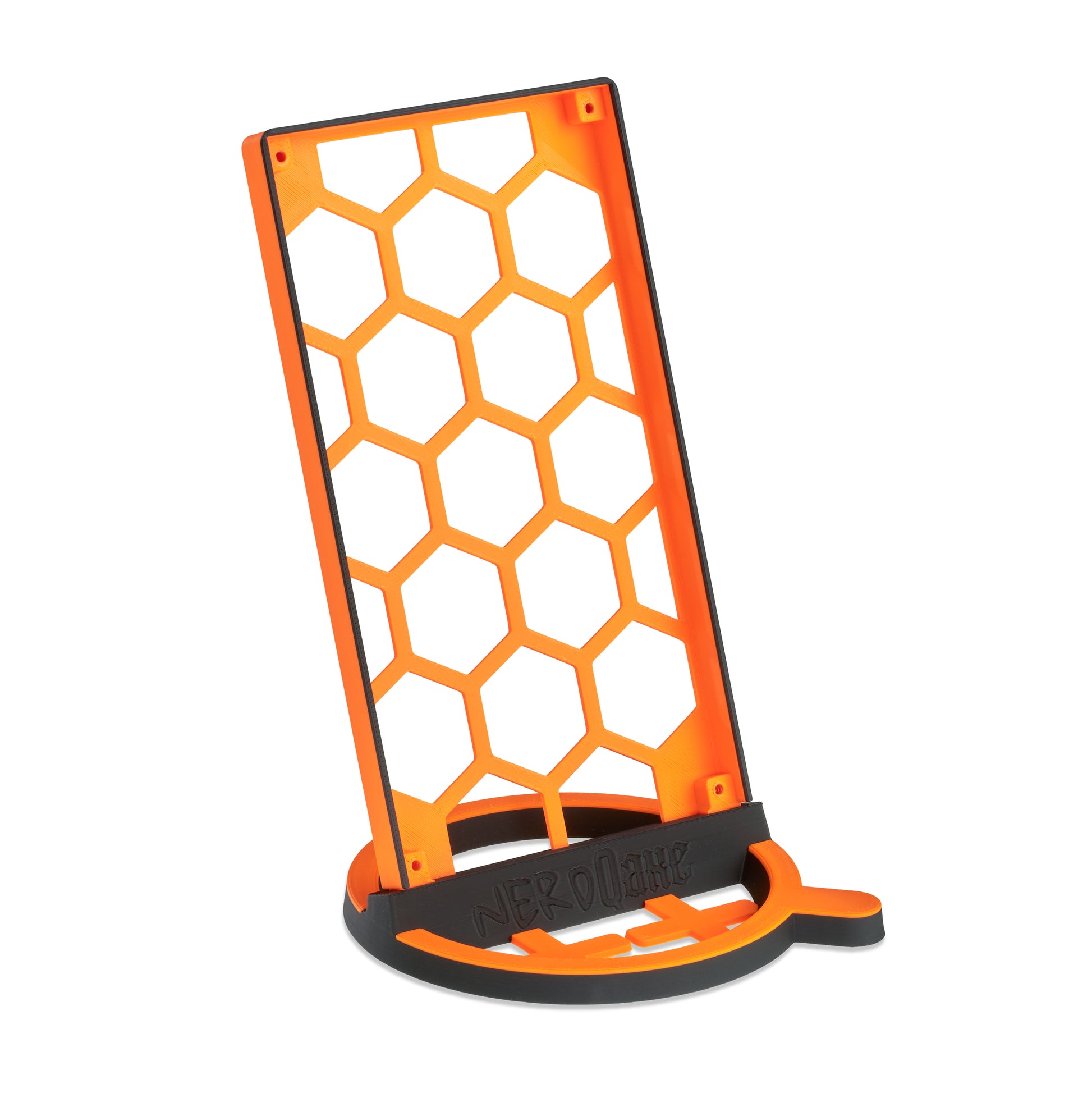

3. Two-tone stand in NerdQaxe++ design incl. mounting screws

The NerdQaxe++ combines manufacturing in Germany, open-source development and almost 5 TH/s in a format that fits in a living room. It also has solid copper cooling, CE marking and OSMU support. With it, you contribute to decentralized Bitcoin mining.

• Overclocking: At your own risk! Damage caused by operating the device beyond the frequency and voltage range provided in the firmware (e.g. with custom or modified firmware) is not a defect of the device and is not covered by the legal guarantee.
• Regular care and maintenance: The NerdQaxe++ is a high-performance miner and needs regular dusting. You should also replace the thermal paste at regular intervals; we recommend replacing it after about 6 months. After 12 to 18 months at the latest, it is necessary.

• Only operate with the supplied power supply.
• Use indoors in dry rooms only, not outdoors, in bathrooms or in damp rooms.
• The heatsink and circuit board get hot during operation. Do not touch while running.
• Keep the fan and ventilation openings clear. Do not cover the device or run it inside a closed cabinet.
• Place on a solid, non-flammable surface, not on paper, fabric or carpet.
• Unplug the power supply before dusting or replacing the thermal paste.
• Operate and store out of the reach of children.
• Do not dispose of with household waste. Take waste electrical equipment to a collection point.
